I have been involved in gas detection equipment for environmental monitoring for many years, with a long-term focus on the core components of various environmental monitoring devices. A very real pain point is that most environmental monitoring equipment manufacturers currently rely on two main solutions for gas sampling—diaphragm pumps or traditional blowers.
However, both solutions have obvious lifespan shortcomings:
- The rubber diaphragm of a diaphragm pump is prone to aging and cracking under continuous reciprocating deformation. Even with high-quality rubber, failure is inevitable after thousands of hours of continuous operation.
- The ball bearings used in traditional blowers, limited by mechanical friction and grease degradation, often last only one to two years under 24/7 uninterrupted operation.
This leads to a chain reaction: after equipment leaves the factory, problems such as decreased sampling flow, increased noise, and even shutdown failures frequently occur. Manufacturers have to invest significant manpower and resources in after-sales repairs and component replacements, which not only increases operating costs but also damages brand reputation.
It was precisely because I saw this industry-wide challenge that I have always wanted to recommend NIDEC's aerodynamic bearing blower to the environmental monitoring field. Its core advantage is that there is absolutely no physical contact between the rotor and stator. The rotor is suspended and supported by an air film formed during high-speed rotation, fundamentally eliminating mechanical wear. This means it offers an ultra-long service life far beyond traditional solutions (theoretically tens of thousands to over one hundred thousand hours), while also featuring low vibration, low noise, and maintenance-free operation.
If this blower can be promoted in scenarios requiring 7×24 continuous sampling—such as tunnel atmospheric monitoring, industrial park boundary early warning, underground parking garage CO monitoring, etc.—I believe the product reliability and user satisfaction of the entire environmental monitoring equipment industry will achieve a qualitative leap. Manufacturers will no longer be burdened by after-sales costs, and users can truly enjoy "install and forget" long-term stable operation. That is exactly my original intention in continuously following and promoting this solution.
Successful application cases already exist. This article aims to raise awareness of this solution among more practitioners.
Typical gas detection scenarios requiring extremely long continuous operation:
1. Industrial Safety and Environmental Monitoring
- Toxic/hazardous gas monitoring at chemical parks/refinery boundaries: H₂S, CO, VOCs leak early warning systems require 365 days × 24-hour uninterrupted sampling.
- Coal mine underground gas (methane) concentration monitoring: Safety regulations mandate continuous monitoring; the blower must run stably for long periods, and the low-vibration characteristic of aerodynamic bearings also helps extend sensor life.
- Landfill/sewage treatment plant biogas monitoring: Methane and H₂S concentrations need real-time monitoring; sites are often unattended, demanding extremely high blower reliability.
2. Building and Enclosed Space Air Quality Assurance
- Underground parking lot/civil air defense project CO concentration monitoring: Basis for ventilation control linkage; requires long-term sampling, and blower lifespan directly affects system maintenance cycles.
- Data center server room air quality monitoring: Corrosive gases (e.g., sulfides) may damage servers; continuous monitoring and fresh air system linkage are needed.
- Subway platform/waiting hall CO₂ and PM2.5 monitoring: Ventilation regulation in crowded areas; equipment is often concealed above ceilings, making replacement inconvenient. Long-life blowers significantly reduce operational and maintenance costs.
3. Scientific Research and Precision Instrument Support
- Front-end sampling systems for online chromatographs/mass spectrometers: Many analytical instruments require continuous gas extraction for composition analysis; the blower needs low pulsation and long life to ensure baseline stability.
- Atmospheric background station/meteorological observation station gas sampling: Global or regional background pollution monitoring stations (e.g., Waliguan Station) operate in remote areas year-round with extremely short maintenance windows.
4. Medical and Health Protection
- Internal gas circuits of ventilators/anesthesia machines: Although the main airflow is provided by turbines, some auxiliary sampling pumps also require long-life design.
- Differential pressure monitoring in clean operating rooms/biological safety cabinets: Continuous sampling maintains positive/negative pressure environments; the blower must run stably for extended periods.
5. Energy and Infrastructure
- Natural gas pipeline leak monitoring nodes: Numerous monitoring probes distributed along pipelines; solar power + long-life blowers enable several years of maintenance-free operation.
- Substation SF₆ (sulfur hexafluoride) leak monitoring: Mandatory requirement in the power industry; monitoring equipment operates outdoors under high and low temperature conditions year-round.

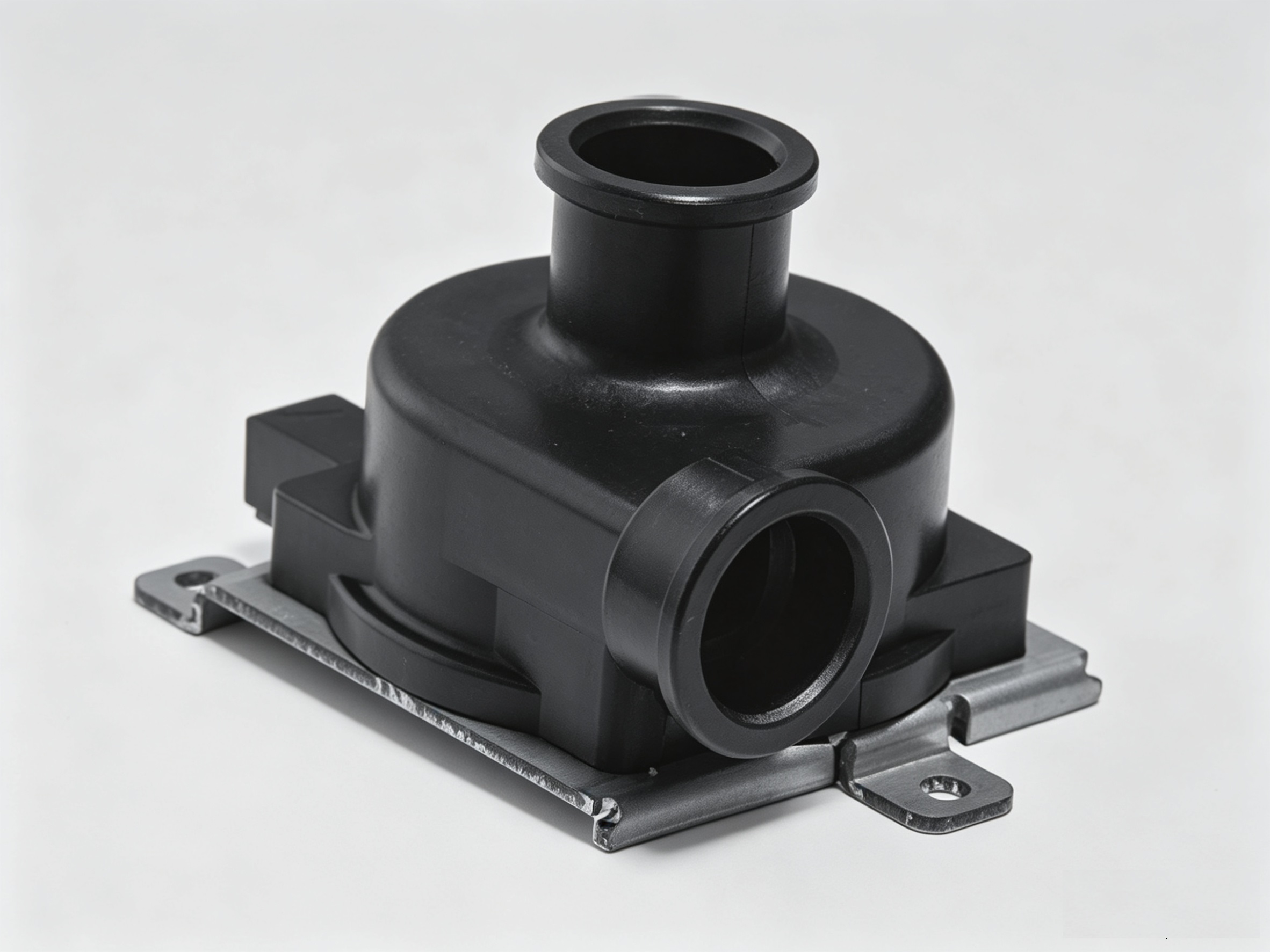

Recommended NIDEC Blower TF037E – Key Parameters
Series: TF037E MICRO BLOWERS
Model: TF037E-2000-F
Bearing: Aerodynamic Bearing → long life, no thermal dependency, low vibration
Housing: UL94 V0 flame-retardant resin, lightweight (165 g)
Air Inlet/Outlet: Quick connect P14 interface
Electrical Parameters
| Parameter | Specification |
|---|---|
| Operating Voltage Range | 10 ~ 30 V |
| Power Supply Current (@3.0 kPa, 100 L/min) | 0.9 A Max. |
| Max. Input Coil Current (Locked Rotor) | 3.0 A Max. (external surge protection required) |
| Power Consumption (same condition) | 21.6 W Max. |
| Motor Type | 3-phase 8-pole brushless (Y connection, 4 pole pairs) |
| Coil Resistance (between phases, 20°C) | 0.5 Ω |
| Coil Inductance (10 kHz, 20°C) | 20 μH |
| Insulation Class | Class E (JIS C 4003) |
| Insulation Resistance | ≥ 20 MΩ (500 VDC, coil to plate) |
| Dielectric Withstand Leakage Current | ≤ 1 mA |
Pneumatic & Speed Performance
| Parameter | Specification |
|---|---|
| Minimum Flow Rate | 5 L/min |
| Speed Range | 6,000 ~ 45,000 rpm (Speed = Hall frequency × 15) |
| Reference Operating Condition | 3.0 kPa @ 100 L/min (P-Q / Q-I curves available for 12V and 24V) |
| Noise | 65 dB(A) @ above condition, 1 m from intake vent (background 15 dB) |
| Applicable Gas | Normal air; do not use with corrosive gases |
| Torque Constant | 0.0025 N·m/A |
Mechanical & Installation
- Recommended mounting orientation: Axis vertical, plate downward
- Avoid vibration and shock during operation (may cause damage)
- Direction of rotation: CCW (counterclockwise viewed from air vent side)
- Rotor inertia: 1.9 × 10⁻⁶ kg·m²
- Fixing leg: Yes
Environmental Specifications
| Parameter | Range |
|---|---|
| Operating Temperature & Humidity | -10 ~ 60 °C / 10 ~ 95% RH (avoid condensation) |
| Storage Temperature | -20 ~ 60 °C |
| Storage Humidity | 10 ~ 90% RH |
Connector & Sensing (12-pin SM12B-PASS)
Pin Assignment:
| Symbol | Function |
|---|---|
| Vcc | Hall sensor power supply |
| H2− / H2+ | Hall 2 differential output |
| H3− / H3+ | Hall 3 differential output |
| H1− / H1+ | Hall 1 differential output |
| GND | Ground |
| TH | NTC thermistor |
| V | Coil V phase |
| W | Coil W phase |
| U | Coil U phase |
Hall Sensor Characteristics: Input resistance per unit: 250~450 Ω; input current ≤10 mA @60°C; differential output ≥300 mVp-p (equivalent to Asahi Kasei HW-105A)
NTC Thermistor: 10 kΩ @25°C, B(25/85)=4100 K, equivalent to TDK NTCG164BH103JT; maximum detection temperature approx. 86°C (0.97 kΩ)
Wire recommendation: AWG#22; both crimping and pressure welding are available (JST SM12B series accessories).
