BLDC Motor in Ovens

The DC brushless (BLDC) motor in an oven is primarily used to drive the fan, forcibly agitating and circulating the hot air within the oven cavity. This results in more even heat distribution and more consistent cooking of the food. Ovens equipped with such a fan are commonly known as convection ovens.

To operate stably and durably in the high-temperature environment inside an oven, this type of motor incorporates a series of special designs, with the core objectives being heat dissipation and thermal insulation​ to ensure longevity:

  • Use of High-Temperature Resistant Components:​ High-temperature enameled wire, heat-resistant insulation materials, and high-temperature bearing grease are employed to ensure internal materials do not degrade or fail under prolonged high temperatures.

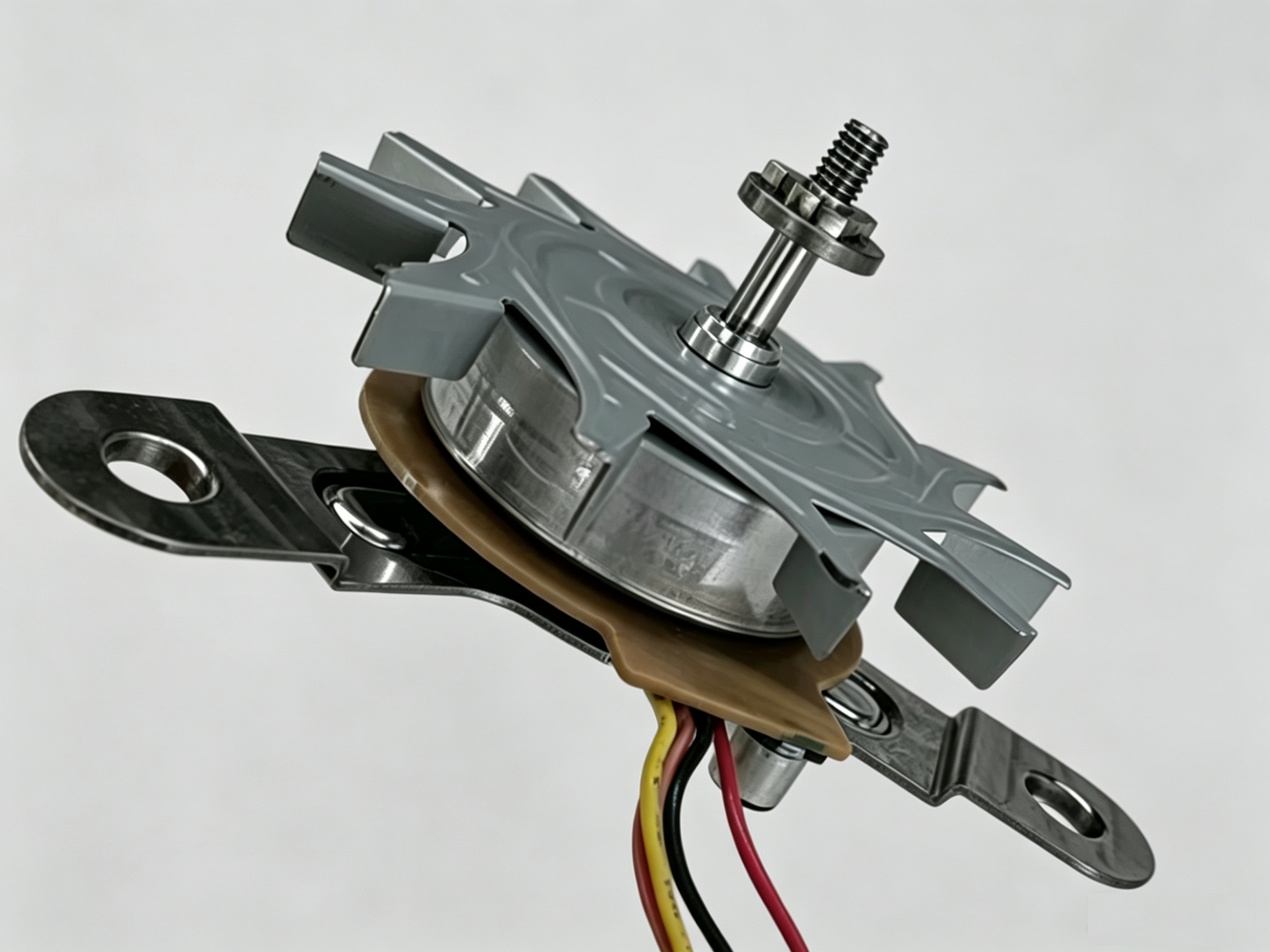

  • Extended Motor Shaft Length:​ The purpose is to install the motor body (containing the coils and bearings) as much as possible in the cooler area outside the oven's inner cavity. A lengthened shaft drives the fan impeller inside the cavity, thereby keeping the core components of the motor away from the main heat source.

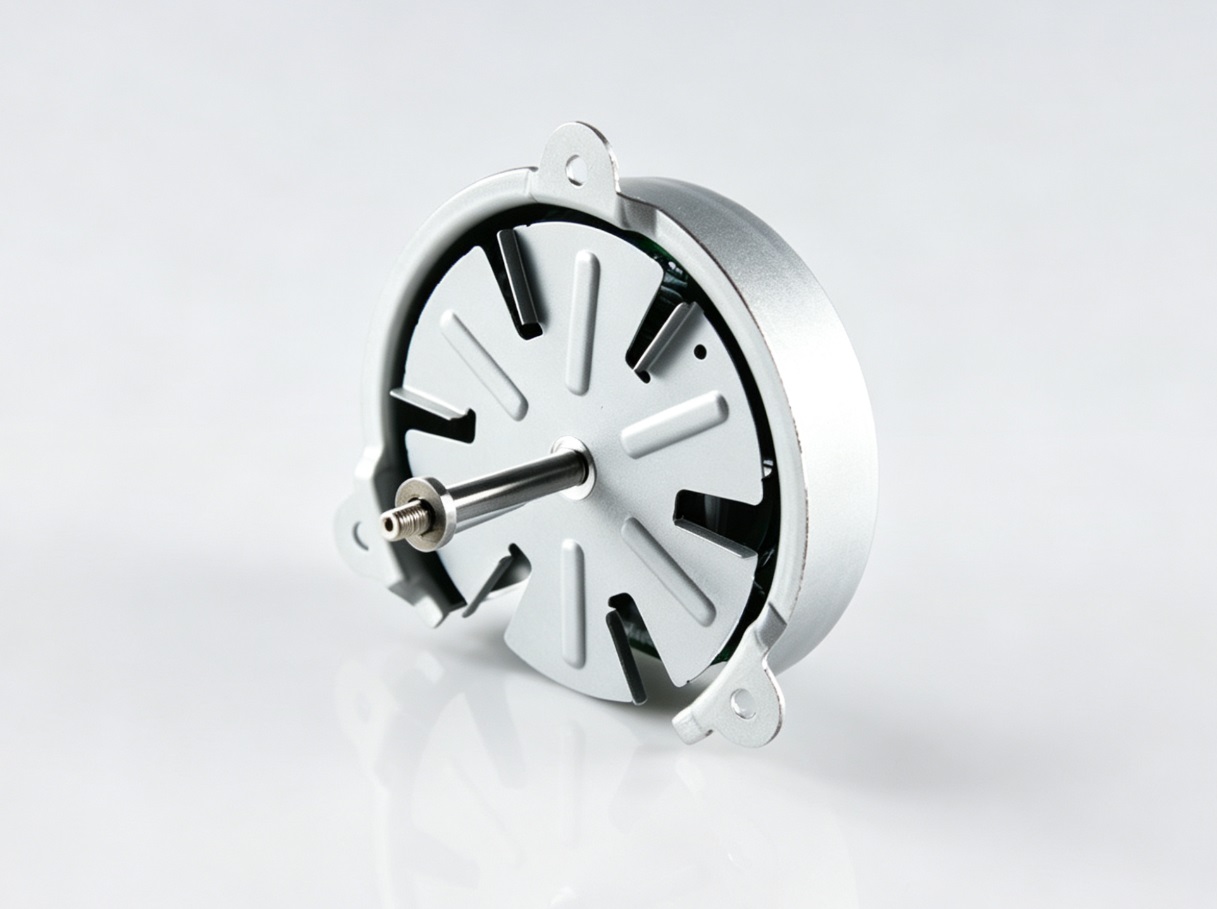

  • Heat Dissipation Blades on the Shaft End:​ Metal blades (often integrated with or separate from the fan impeller) are installed on the shaft end that extends into the oven cavity. As the motor rotates, these blades generate airflow, actively providing air cooling to the motor shaft and bearing areas, further reducing the operating temperature of these critical parts.

Furthermore, a sealed structure is typically used in conjunction to block oil fumes and humidity from entering the motor interior. Together, these design features ensure the motor's long-term reliability in harsh environments.

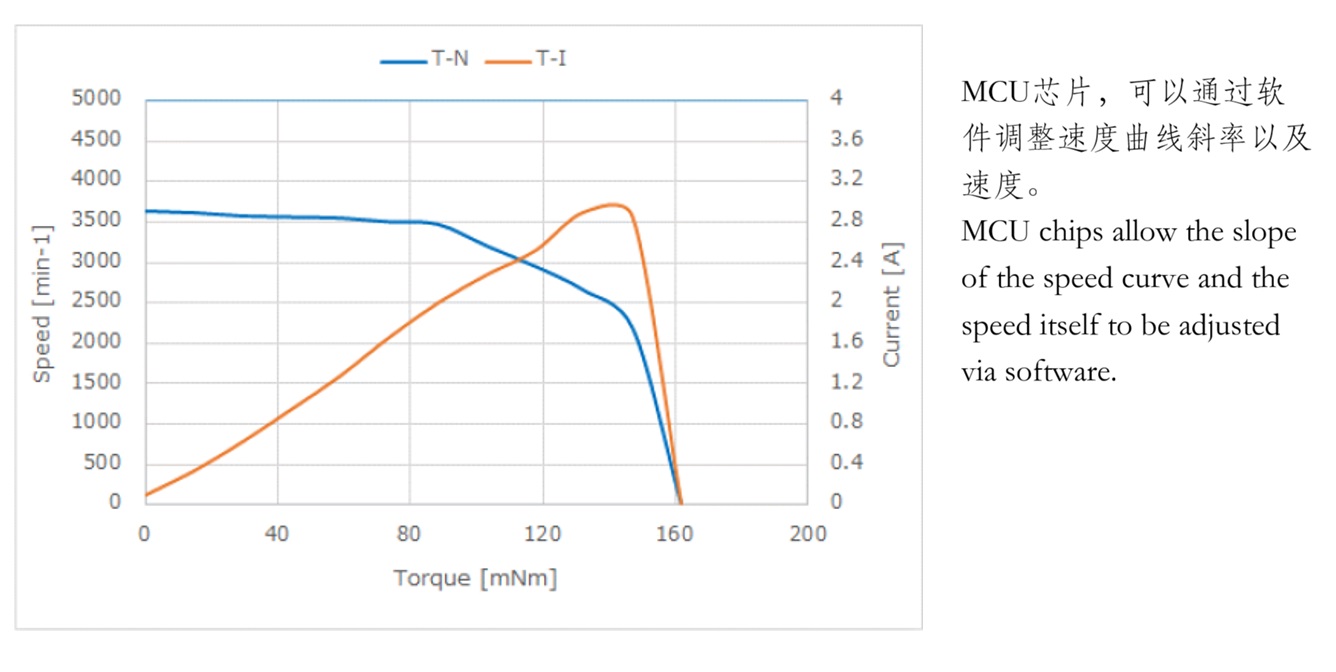

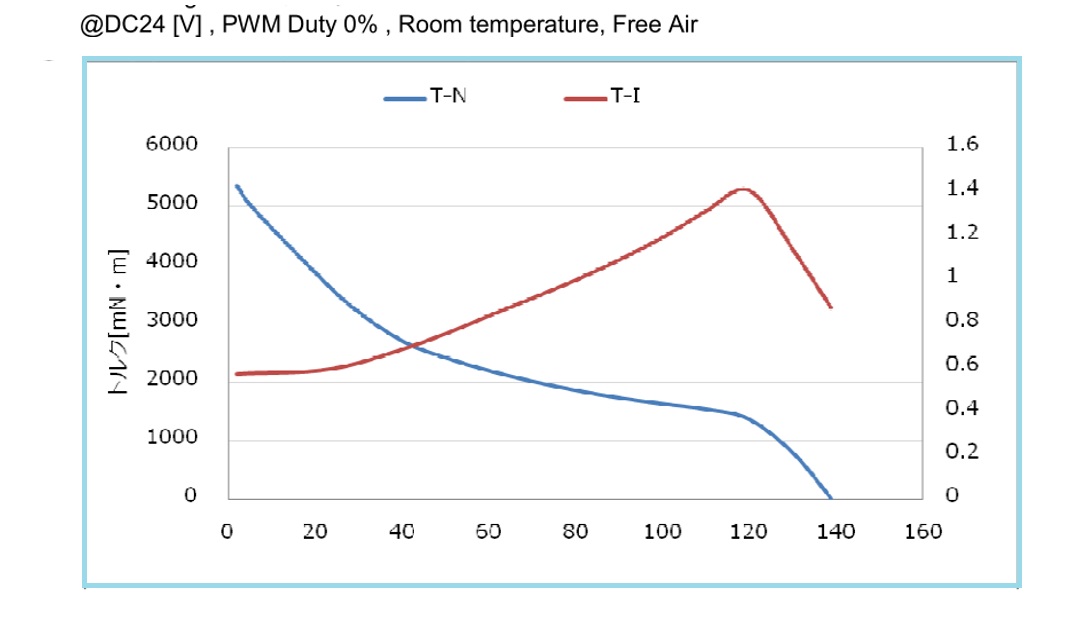

NIDEC Oven-Use BLDC Motor Characteristic Curve:

MCU Chip Programmable Features:

The MCU chip allows for software adjustment of the speed curve slope and speed. Customization is available based on user requirements, with expandable features such as:

Application Fields:

The high-temperature resistance and active cooling design of oven motors also make them suitable for other demanding applications, such as:

  • Industrial Baking & Drying:​ Food drying lines, paint drying rooms, printing drying equipment, ceramic sintering furnaces. Used to drive hot air circulation fans for consistent temperature.
  • Commercial Kitchen Equipment:​ Large commercial ovens, proofing cabinets, combi ovens/steamers, hood exhaust systems. Used to drive hot air or exhaust high-temperature fumes.
  • Industrial Kilns & Heat Treatment:​ Hot air circulation furnaces, tempering furnaces, curing ovens, cooling fans for glass tempering furnaces. Used to drive hot air or cooling air within the furnace.
  • Plastics & Rubber Machinery:​ Drying hoppers for injection molding machines, cooling fans for extruder die heads, vulcanizing machines. Used to deliver hot air to hoppers or provide forced cooling.
  • Environmental & Exhaust Gas Treatment:​ Induced draft fans for industrial dust collectors, fume purifiers, and Regenerative Thermal Oxidizer (RTO) systems. Used to convey high-temperature exhaust gases.
  • Textile Printing & Finishing:​ Hot air circulation fans for fabric setting machines and dyeing vats. Ensures hot air penetrates fabrics for setting and drying.

For more detailed information on oven motors, please leave a message or contact us via email.
